Key Takeaways
- Automated 3D dimensioning reduces measuring errors that cause chargebacks, mis-slots, and delays, with payback in as little as three months.
- Dimensional data improves slotting, cartonization, load planning, and DIM billing, making it core infrastructure for warehouse optimization.
- WMS/TMS integration creates a data loop that improves SKU records, storage efficiency, pack-outs, and shipping costs at scale.
Thirty-five percent. That's the share of freight shipments misclassified every year because of inaccurate weight or dimensional data. Every mis-measured package is a potential carrier chargeback. Every inaccurately slotted SKU wastes rack space, costing $9.12 per square foot (Cushman & Wakefield, Q2 2025).
3D dimensioning automates the capture of a package's length, width, and height in under two seconds, feeding the data directly into your WMS, TMS, or ERP and reducing errors at every downstream step, from slotting to shipment.
What are the 3 dimensions of a package and why do they matter in warehousing?

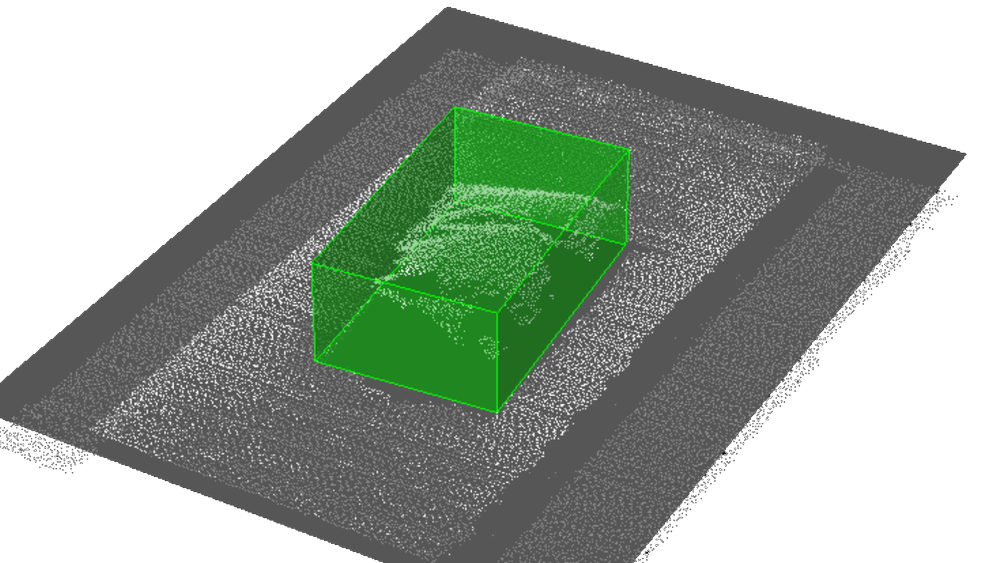

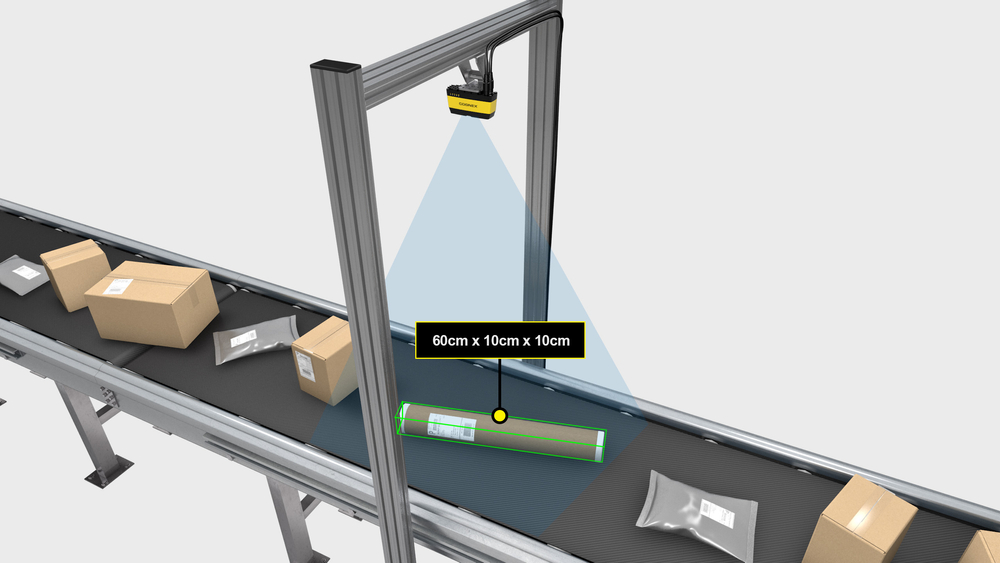

3D dimensioning captures three spatial measurements, length, width, and height, which together determine how much cubic space a SKU occupies and the cost to ship. Modern systems process a full package profile in under two seconds using structured light, time-of-flight sensors, or laser triangulation, with accuracy as tight as ±1–2.5 mm, then automatically transfer data to your WMS or TMS via a standard API or middleware.
Those three dimensions also govern carrier billing. Global Express Carriers (DHL) and Yamato Transport (Japan) have used dimensional weight (DIM weight) standards since the 1970s, while UPS, FedEx, and SF Express (China) introduced similar pricing standards for ground shipments in 2015, charging based on whichever is larger, the actual or volumetric weight. Automated 3D dimensioning captures accurate volumetric data before the label prints, enabling accurate rate shopping and eliminating the invoice corrections that follow a carrier reweigh.
How 3D warehouse dimensioning solves the slotting problem
Effective slotting requires assigning every SKU to a location that minimizes travel time and accommodates product dimensions, and that task is impossible without accurate size data. Dimensional data gives your WMS the inputs it needs to calculate true cubic movement, assign appropriately sized storage positions, and prevent products from landing in oversized slots because no one measured them accurately at receiving. Research from Optioryx found that slotting with accurate dimensional data can reduce picker walk distances by 20 to 55 percent.
Want to go deeper on warehouse automation opportunities? Explore Cognex logistics dimensioning solutions across the warehouse.
What operational benefits does automated 3D dimensioning deliver?
Manual vs. Automated 3D Dimensioning: Key Operational Metrics
Metric | Manual Measurement | Automated 3D Dimensioning | Improvement |
|---|---|---|---|
| Measurement Time | 3–5 min/item¹ | < 1–2 seconds¹ | ~99% faster |
| Accuracy | ±0.5–1 inch¹ | ±1–2.5 mm¹ | 10x higher resolution |
| Freight Misclassification | ~35% of shipments² | Near zero | Eliminates chargeback exposure |
| Labor Required | Dedicated headcount | Inline, automated | Redeploys labor to value-add tasks |
| WMS Integration | Manual data entry | Automatic API/data push | Real-time data accuracy |
| Payback Period | N/A | 3–18 months¹ | Positive ROI within first year common |
¹ Measurement time, accuracy, and payback period benchmarks: Apex Warehouse Systems, Cubing and Weighing Systems.
² Freight misclassification rate: Kyle Messerly, Rice Lake Weighing Systems, via Modern Materials Handling.
Inaccurate dimensional data doesn't just inflate a shipping invoice. It creates a cascade of operational failures, and Juergen Neumann, Customer Success Engineer at Cognex, has seen it firsthand:
Incorrect dimensions cause poor storage utilization. If the system thinks a box is larger than it is, it leaves unnecessary gaps; if smaller, the box won't fit the space calculated for it. And if a customer's master data doesn't match, they're doing manual inspection or rework to recover.
In automated storage and sortation systems, the stakes climb further:
In more serious cases, wrong dimensions can cause problems in automated storage or sortation systems. If a package is unexpectedly larger than calculated, it can create a crash risk in the storage or sortation equipment.
In a highly automated facility, dimensional precision isn't just a billing concern. It's an uptime and safety issue.
Cognex logistics-based dimensioning solutions output object position and rotation data, indicating to operators whether each package is centered on the belt, offset left or right, or rotated out of alignment. Neumann notes:
This helps integrators optimize conveyor flow because they can see whether objects are consistently off-center or rotated, information that surfaces upstream handling problems before they cause a jam or mis-sort.
Are you interested in seeing how dimensioning can help your organization? Request a demo

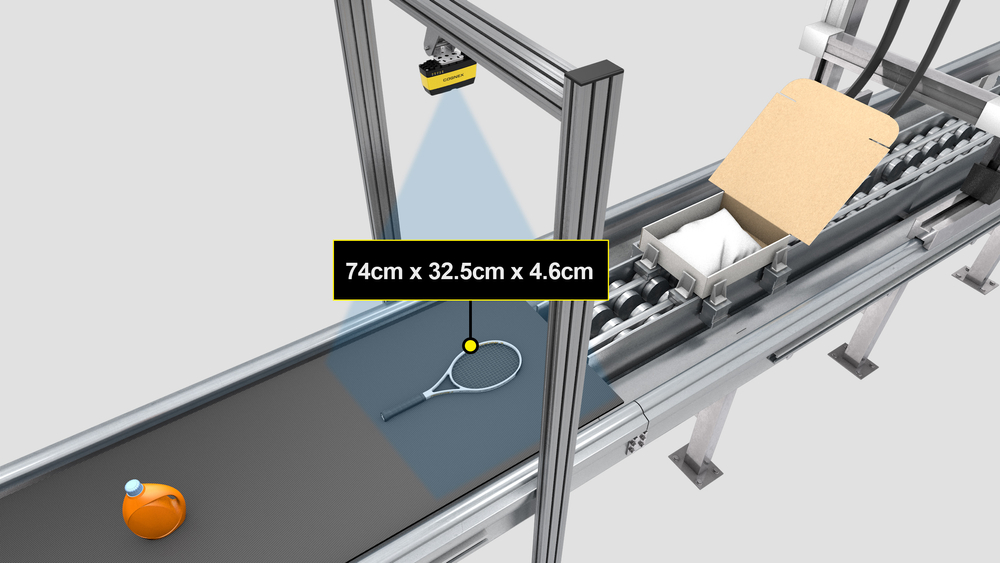

How does 3D dimensioning improve cartonization and pack-out efficiency?
Cartonization, selecting the right carton for each order, directly affects void fill, corrugate cost, and DIM weight billing. Accurate dimensional data lets your cartonization engine select the smallest appropriate carton every time, without guesswork. Many e-commerce facilities are achieving significant savings by optimizing their packaging operations with dimensional data, such as the 21% reduction in outbound shipments that one European operator achieved across 14 hubs after integrating dimensioning data with their Transportation Management System.
Dimensioning accelerates returns processing too
When a return arrives, image capture confirms product identity and condition in seconds, allowing the item to re-enter available stock immediately rather than waiting in a manual measurement and re-slotting queue. That cycle time reduction directly improves sellable inventory availability.
How high-volume logistics operations leverage 3D dimensioning
American Eagle Outfitters — omnichannel routing at scale
American Eagle Outfitters integrated Cognex 3D dimensioning systems into vision tunnels at the pre-sorter stage of its omnichannel distribution facility. DataMan barcode readers scan and route items, while the 3D vision system classifies and dimensions each package to ensure it is routed to storage that can properly accommodate its size, eliminating mis-sorts across both retail replenishment and direct-to-consumer lines.
Read the full Cognex customer story.
StreamTech Engineering — end-of-line accuracy for e-commerce fulfillment
StreamTech Engineering's Sprinter end-of-line print-and-apply system uses a Cognex 3D dimensioner to capture overhead dimensions, avoiding the floor-level footprint that competes with conveyor traffic. It then feeds that data to rate-shopping software to select the lowest-cost carrier at label generation. As StreamTech's team puts it: "If dimensions are off by more than one inch, you will see fees from carriers, which can be significant."
Read the full Cognex customer story.
Integrating 3D dimensioning into your warehouse automation stack
3D dimensioning systems output data via API, MQTT, or middleware connectors that integrate with major WMS, TMS, and ERP platforms. A dimensioner operating in isolation creates a data island, forcing manual re-entry and undermining the efficiency gains the system was installed to deliver. Deployment follows three stages:
- Hardware selection: Match sensor type to your package profile. Overhead 3D imaging handles parcels and polybags at conveyor speed; pallet dimensioners support outbound LTL compliance; handheld devices fill gaps for oversized or irregular items.
- System integration and measurement rules: Define the API handshake between the dimensioner and your WMS/TMS, configure DIM weight divisors and rounding tolerances, and set exception logic for deformable items to align with carrier contracts.
- Pilot and validation: Run a controlled pilot with a representative sample of SKUs, compare automated reads to manual baselines, and validate accuracy before full deployment.
Why dimensioning system placement matters more than most teams expect
Where you mount a dimensioning system on your conveyor line directly affects measurement accuracy. Two placement mistakes account for most preventable performance issues after installation. Neumann explains:
A common issue is installing the system over two conveyor belts rather than one continuous section. If there's a gap between belts or the heights differ, the object can jump or shift during the transition, reducing measurement accuracy. Mount over one long, stable conveyor section instead.
The second mistake is less obvious but equally costly:
Running the conveyor in start-stop mode at the measurement point is also a problem. If the conveyor stops and the object slides, the system may not capture the correct length. Adjust the process flow so starts and stops happen before or after the dimensioning position.
Both mistakes stem from the same misunderstanding: treating a precision measurement instrument like a plug-and-play scanner. Proper placement from the start during commissioning prevents calibration drift and inconsistent readings that quietly erode ROI long after installation.
What does legal-for-trade certification actually require?
Legal-for-trade certification is widely misread as a guarantee of measurement accuracy. It is not. Neumann clarifies:
Legal-for-trade certification is not only about accuracy. A system with low accuracy can still be certified if the documents state what it reliably achieves. It means the system is certified to deliver the performance in its data sheet, including protection against manipulation. In Europe, Alibi Memory is required, where measurement data is stored securely so providers can verify it if a customer disputes an invoice months later.
Requirements vary by region: North America (US and Canada) relies on audit trails and security seals, while Asia uses both approaches by country. For operations evaluating dimensioning systems for carrier billing or dispute resolution, determining the applicable framework and its recertification obligations is a procurement decision, not a post-installation one.
Turning dimensional data into a warehouse optimization strategy
Warehouse costs leave no room for guesswork in measurement. Space costs $9.00 or more per square foot. Labor costs climbed 48 percent between 2017 and 2024. Carrier fees can also penalize dimensional inaccuracy, with no room for appeal. In Industry 4.0 environments, dimensioning data feeds dynamic slotting engines, digital twin simulations, and real-time load planning through IIoT-connected WES platforms. As facilities become more automated, the gap between manual and automated measurement continues to widen.
The facilities that extract the most value from 3D dimensioning don't treat it as a shipping-compliance tool. They treat it as foundational data infrastructure, the measurement layer that helps slotting, cartonization, load planning, and rate shopping perform better together. Payback typically ranges from three to eighteen months, depending on order volume.
