Why AOI Keeps Missing Defects, and How 3D Inspection Closes the Gap

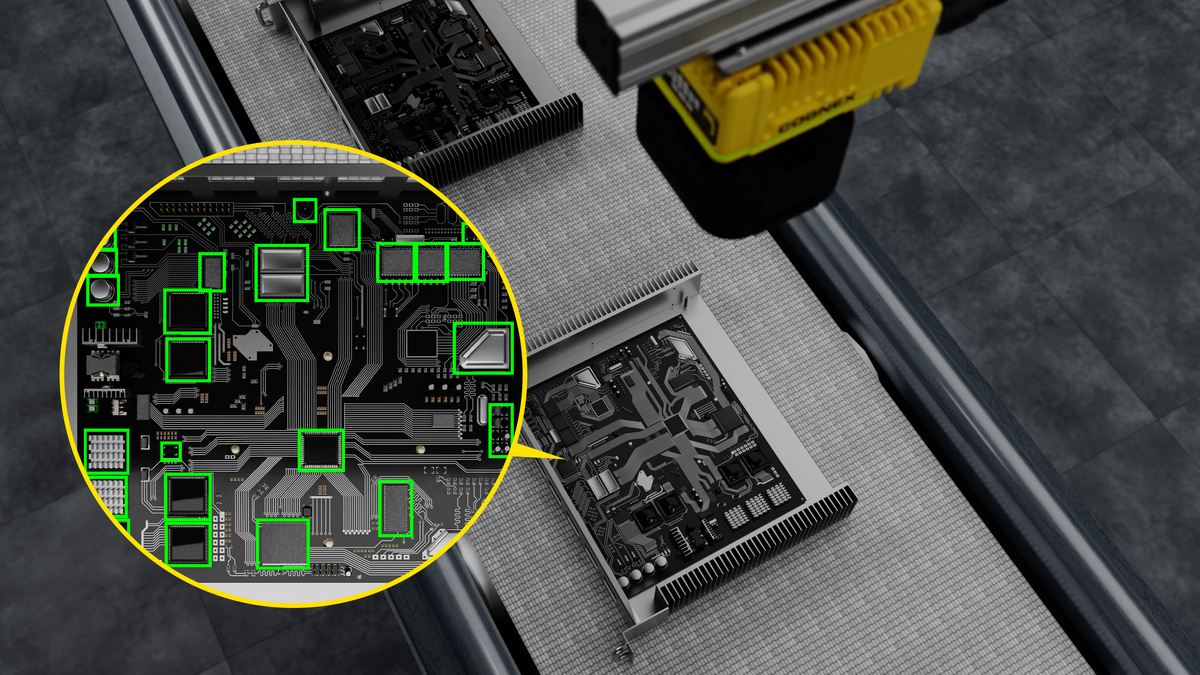

Your 2D AOI system is doing exactly what it was built to do. It just wasn't built to see height. Every defect that hides in the third dimension – a lifted lead, a starved solder joint, a tilted component – slips past a camera that only understands flat images and light contrast.

That's not a software bug. It's a structural limitation of the technology. A 2D system captures a picture. It cannot measure depth, volume, or shape unless it's given a way to reconstruct that geometry, and most legacy Automated Optical Inspection (AOI) stations were never designed to do that.


What is the real difference between 2D AOI and 3D inspection?

2D AOI analyzes brightness and color in a flat image to spot visible surface defects. 3D inspection instead measures actual height, volume, and shape using structured light, laser triangulation, or multi-camera reconstruction. The distinction matters because many of the costliest defects in modern production assembly are volumetric, not visual.

Picture a stain on a white desk. If the stain has any color contrast against the desktop, a 2D camera catches it instantly. But if the mark is the same shade as the desk and only shows up as a slight difference in thickness, the kind you'd only notice by running a finger across it, contrast-based imaging has nothing to work with. Height data, not more pixels, becomes the only way to catch it.

The same logic applies to shape. Look straight down at a manhole cover from directly above, and a slightly lifted or tilted cover still reads as a perfectly round shape in a 2D image. Only a system that measures actual height across the surface will catch that the cover is sitting wrong.

This is also where AI-powered machine vision and rule-based inspection start to diverge. Rule-based compare pixels against fixed thresholds. AI-enabled systems learn what normal geometric variation looks like and flag genuine anomalies, which is a major reason false call rates have fallen as manufacturers adopt deep learning alongside 3D data capture.

Why does 2D AOI miss certain defects?

2D AOI misses defects that only reveal themselves through height or volume, because the technology has no way to measure either. A component that's tilted upward instead of seated flat, a connection with too little material underneath it, or a surface that's warped instead of flat can all look acceptable in a flat image, even when the part is out of spec.

Lighting does more damage than most engineers realize

Shadows cast by taller components onto neighboring joints, and reflections off shiny leads or metal surfaces, distort the brightness patterns that 2D AOI depends on. In dense layouts, this produces a chain reaction. The system either misses a real defect hidden in a shadow or, more often, flags a perfectly good part because the lighting made it look wrong.

Subsurface and hidden defects stay invisible no matter the camera

No amount of resolution helps a top-down camera see under a part. Connections hidden beneath a component, features sealed inside an enclosure, and details tucked behind taller neighboring parts sit completely outside the field of view. These defects require either height measurement from an angle, or a different inspection method like X-ray, layered on top of optical inspection.

A PCB Assembly Example, MLCC Seating

Multilayer ceramic capacitor, or MLCC, inspection shows exactly where the line between 2D and 3D sits, notes Dennis Park, Senior Applications Engineer at Cognex. A 2D system with a high-resolution camera and the right lighting easily catches a missing MLCC or one that's cracked or visibly scratched, because those defects change the part's outline enough to register. A component tilted to the side also changes its outline enough that AI or classification tools can usually still catch it.

An MLCC that isn't seated flat is a different problem. One that's tilted upward, or simply sitting slightly higher than it should, looks nearly identical from directly above. A 2D system has no way to measure that height difference. Pushing 2D thresholds tighter to try to catch it tends to backfire, flagging a wave of parts that are actually fine and driving the false reject rate up instead of down.

The hidden cost of false rejects and missed defects

False rejects cost more in daily operations than most manufacturers budget for, because every flagged board pulls an operator away from real production work to manually verify a part that was never actually defective. Older 2D AOI systems have been reported with false reject rates as high as 50%, while AI-assisted 3D systems commonly bring that down into the single digits.

Missed defects carry the opposite risk. A defect that escapes AOI and reaches final test –  or worse, the customer – gets dramatically more expensive to fix the further downstream it moves. Quality professionals often reference the 1-10-100 rule: a defect caught before production might cost about a dollar to resolve, the same defect caught during assembly costs roughly ten times that, and one that escapes to the customer can cost on the order of a hundred times more once rework, line-down time, and reputational damage are factored in.

A PCB Assembly Example, Defect Detectability by Type

The table below uses PCB assembly to illustrate the pattern, since it's one of the clearest ways to see where 2D and 3D diverge. The same split shows up in other production environments too, just with different defect names attached to it.

The table shows 2D AOI reliably catches flat, visible defects like missing components and solder bridges, but consistently fails on height-dependent defects such as lifted leads, insufficient solder volume, and coplanarity, which 3D inspection detects through direct measurement. Neither method sees fully hidden joints, which still require X-ray or in-circuit test.

Not every height-related defect is actually a 3D problem, and this is a distinction that often complicates buying decisions, according to Dennis Park, Senior Applications Engineer at Cognex. Thin, long, deep scratches are a good example. They seem like an obvious use case for 3D line scanners, but 3D systems often miss them, because a line scanner's XY resolution is typically lower than a comparable 2D camera's. Extra depth resolution doesn't compensate for the XY resolution needed to trace a fine scratch.

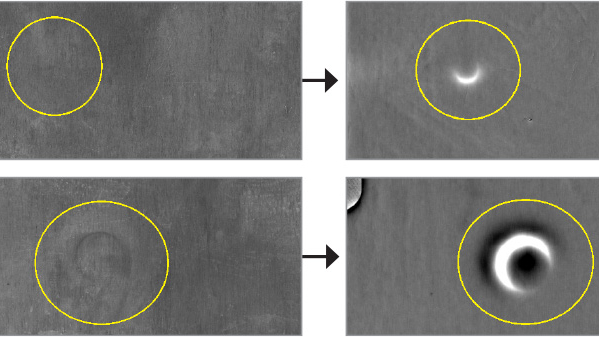

This particular defect type is actually easier to catch with a 2D system using computational imaging, capturing multiple images under different lighting angles and combining them into a single composite image that reveals the scratch without needing true height data. Park's broader point holds regardless of the specific tools involved. Match the inspection method to the defect's actual geometry, not to whichever technology sounds more advanced.

How does 3D inspection solve what 2D cameras cannot see?

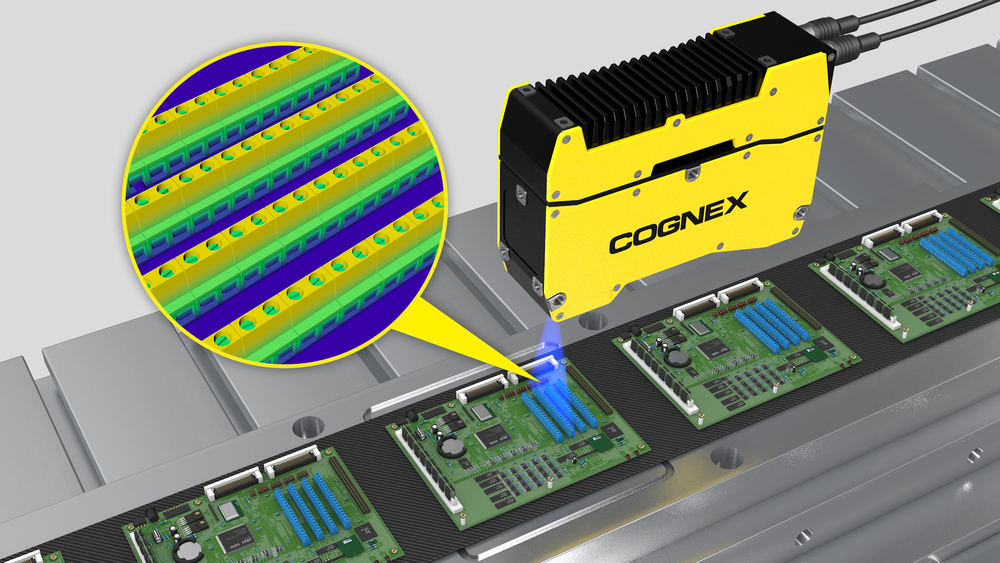

3D inspection solves the visibility gap by capturing actual geometric data instead of a flat image, using techniques like structured light projection, laser displacement, or multi-camera triangulation to build a height map of every point on a part. That height map lets the system measure, not estimate, whether a joint or component meets tolerance.

Structured light and laser displacement in plain terms

Structured light works by projecting a known pattern, often a grid or set of lines, onto a part and watching how that pattern distorts across the surface. The distortion reveals height differences point by point. Laser displacement takes a similar approach with a single laser line, sweeping it across a surface and calculating height from how the reflected line shifts. Both methods turn light into a measurement instead of just a picture.

Where does AI fit into 3D machine vision?

AI adds pattern recognition to the raw measurement data that 3D sensors capture, so the system can distinguish a true defect from normal manufacturing variation instead of relying on fixed thresholds. This is part of why AI defect detection paired with 3D data has become one of the fastest-growing combinations in industrial quality control, particularly for mid-sized manufacturers that need scalable inspection without a large team of vision engineers tuning parameters by hand.

For manufacturers evaluating a shift, this is usually a good moment to look at 3D vision systems alongside existing 2D vision systems already on the line, since many production environments end up running both technologies side by side rather than replacing one with the other.

How BOS innovations solved a robotic bin-picking problem with 3D vision?

BOS Innovations initially tried to solve a randomized robotic bin-picking application using a 2D vision camera paired with a laser guide, but the setup could not deliver the accuracy and robustness the project required. The team switched to a 3D line scan camera from Cognex and the added height data gave the robot a precise target on zirconium rods with reflective, specular surfaces that had previously confused the 2D setup.

"We tried solving the bin-picking application with 2D machine vision and a laser, but we did not see the level of robustness we would be proud of. We pivoted halfway through and selected [a 3D laser profiler] from Cognex for accuracy and speed," said Alex Klarenbeek, Senior Project Lead for Vision Systems at BOS Innovations.

Full story: https://www.cognex.com/customer-stories/other/how-bos-innovations-uses-cognex-3d-machine-vision-to-automate-robotic-bin-picking

Do customers expect too much precision from 3D vision?

Customers often expect a 3D vision system to match the precision of a calibrated measuring tool like a caliper, and that mismatched expectation is where a lot of 3D inspection projects run into trouble, says Park. A 3D vision system is a vision system, not a certified metrology instrument, so a small gap between the real-world value and the extracted 3D scan data is normal, not a sign the system is broken.

What 3D vision systems are genuinely strong at, in Park's view, is repeatability. Measurements stay stable and consistent scan after scan, which means that gap between the real-world and measured value can typically be corrected with a calibrated offset once it's identified. His practical takeaway for anyone specifying a 3D system is to build in a realistic error margin based on the exact X,Y, and Z resolution of the camera being deployed, rather than assuming 3D vision performs like a lab-grade caliper.

Is 3D inspection worth the investment for your line?

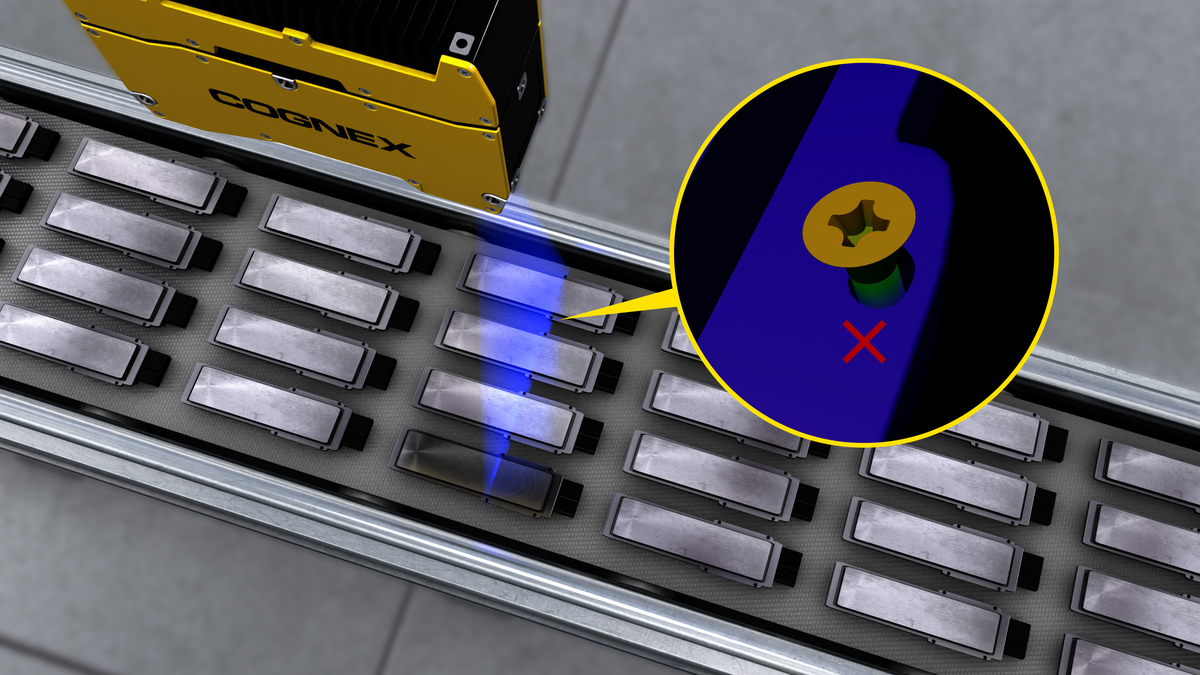

3D inspection is worth the investment when your current false reject or missed-defect rate is reducing throughput, when your components involve height-sensitive tolerances, such as connections hidden underneath a part rather than visible from above, or when your parts have reflective or specular surfaces that confuse standard 2D imaging. It costs more upfront than 2D AOI and requires more setup expertise, but for the right defect profile it pays back quickly in reduced rework and fewer downstream escapes.

The decision isn't always all-or-nothing. Many production lines keep 2D AOI for fast, low-cost screening of visible defects, then add 3D inspection at the specific stations where height-based defects are most likely, such as inspecting components whose solder joints sit underneath the part body rather than around its edges.

The scale of the false reject problem is well documented. A peer-reviewed methodology published through IEEE, applied across eight automotive electronics manufacturing projects, reduced false reject rates by 56% within 10 months once the root causes were systematically addressed rather than patched line by line. That is a useful benchmark for any manufacturer trying to build an internal business case, since it shows the payback isn't only about catching more real defects. It's about no longer burning labor and line time chasing false ones.

Asked what one thing customers should change about how they approach inspection, Park's answer is straightforward. Define the defect standard before picking the technology. Customers who lead with a clear, precise definition of the defect – whether it's a non-linear surface flaw like a scratch or stain, or a difference in height and volume – can match the inspection method to the actual problem instead of over-buying or under specifying. Surface defects that can be distinguished by appearance, such as changes in color, texture, or reflectivity, can often be detected with a high-resolution 2D camera and the right lighting. Defects distinguished by height or volume call for 3D inspection. Getting that classification right at the start is what prevents both wasted investment and defects that keep slipping through.

What should manufacturers do next?

Manufacturers evaluating an upgrade should start by mapping which defects are actually escaping their current process, rather than assuming more camera resolution will fix the problem. Height-based defects need height-based measurement. That single fact should drive the buying decision more than pixel count or frame rate ever will.

Standards like IPC-A-610 already define the acceptance criteria most manufacturers inspect against, and pairing that criteria with GigE Vision-compatible 3D hardware makes it straightforward to integrate new inspection stations into an existing Industry 4.0 or IIoT data architecture without a full line redesign.

Teams ready to see the difference in person can get a demo of a 3D machine vision solution running against their own part geometry, which is generally the fastest way to know whether a defect type has been escaping undetected.

Practitioner insights draw on interviews with Dennis Park Senior Applications Engineer at Cognex.
